Auto updates

BEC Widgets provides a simple way to update the entire GUI configuration based on events. These events can be of different types, such as a new scan being started or completed, a button being pressed, a device reporting an error or the existence of a specific metadata key. This allows the users to streamline the experience of the GUI and to focus on the data and the analysis, rather than on the GUI itself.

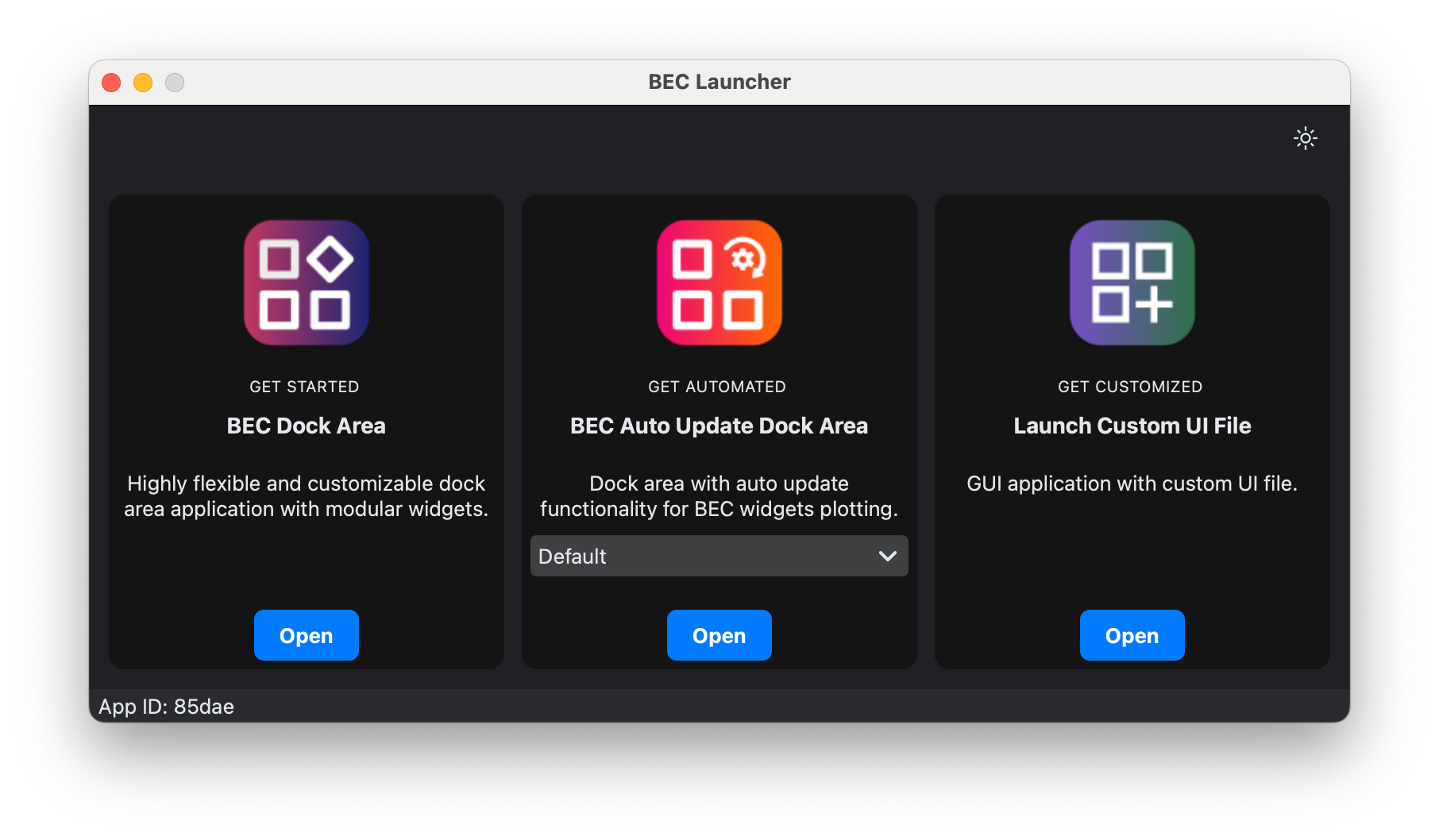

The auto update widget can be launched through the BEC launcher:

The auto update’s launch tile also provides a combo box to select the specific auto update to be launched. These options are automatically populated with all available auto updates from a plugin repository and the default auto update.

Once the proper auto update is selected and launched, the CLI will automatically add a new entry to the gui object.

The default auto update only provides a simple handler that switches between line_scan, grid_scan and best_effort. More details can be found in the following snippet.

Auto Updates Handler

    def on_scan_open(self, msg: ScanStatusMessage) -> None:
        """
        Procedure to run when a scan starts.

        Args:
            msg (ScanStatusMessage): The scan status message.
        """
        if msg.scan_name == "line_scan" and msg.scan_report_devices:
            return self.simple_line_scan(msg)
        if msg.scan_name == "grid_scan" and msg.scan_report_devices:
            return self.simple_grid_scan(msg)
        if msg.scan_report_devices:
            return self.best_effort(msg)
        return None

As shown, the default auto updates switches between different visualizations whenever a new scan is started. If the scan is a line_scan, the simple_line_scan update method is executed.

Auto Updates Simple Line Scan

    def simple_line_scan(self, info: ScanStatusMessage) -> None:
        """
        Simple line scan.

        Args:
            info (ScanStatusMessage): The scan status message.
        """

        # Set the dock to the waveform widget
        wf = self.set_dock_to_widget("Waveform")

        # Get the scan report devices reported by the scan
        dev_x = info.scan_report_devices[0]  # type: ignore

        # For the y axis, get the selected device
        dev_y = self.get_selected_device(info.readout_priority["monitored"])  # type: ignore
        if not dev_y:
            return

        # Clear the waveform widget and plot the data
        # with the scan number and device names
        # as the label and title
        wf.clear_all()
        wf.plot(
            device_x=dev_x,
            device_y=dev_y,
            label=f"Scan {info.scan_number} - {dev_y}",
            title=f"Scan {info.scan_number}",
            x_label=dev_x,
            y_label=dev_y,
        )

        logger.info(
            f"Auto Update [simple_line_scan]: Started plot with: device_x={dev_x}, device_y={dev_y}"
        )

As can be seen from the above snippet, the update method changes the dock to a specific widget, in this case to a waveform widget. After selecting the device for the x axis, the y axis is retrieved from the list of monitored devices or from a user-specified selected_device.

The y axis can also be set by the user using the selected_device attribute:

gui.AutoUpdates.selected_device = 'bpm4i'

Auto Updates Code

from __future__ import annotations

from typing import TYPE_CHECKING, Literal, overload

from bec_lib.endpoints import MessageEndpoints
from bec_lib.logger import bec_logger
from bec_lib.messages import ScanStatusMessage

from bec_widgets.utils.error_popups import SafeSlot
from bec_widgets.widgets.containers.dock_area.dock_area import BECDockArea
from bec_widgets.widgets.containers.main_window.main_window import BECMainWindow
from bec_widgets.widgets.containers.qt_ads import CDockWidget

if TYPE_CHECKING:  # pragma: no cover
    from bec_widgets.utils.bec_widget import BECWidget
    from bec_widgets.widgets.plots.image.image import Image
    from bec_widgets.widgets.plots.motor_map.motor_map import MotorMap
    from bec_widgets.widgets.plots.multi_waveform.multi_waveform import MultiWaveform
    from bec_widgets.widgets.plots.scatter_waveform.scatter_waveform import ScatterWaveform
    from bec_widgets.widgets.plots.waveform.waveform import Waveform


logger = bec_logger.logger


class AutoUpdates(BECMainWindow):
    _default_dock: CDockWidget | None
    USER_ACCESS = ["enabled", "enabled.setter", "selected_device", "selected_device.setter"]
    RPC = True
    PLUGIN = False

    # enforce that subclasses have the same rpc widget class
    rpc_widget_class = "AutoUpdates"

    def __init__(
        self, parent=None, gui_id: str = None, window_title="Auto Update", *args, **kwargs
    ):
        super().__init__(parent=parent, gui_id=gui_id, window_title=window_title, **kwargs)

        self.dock_area = BECDockArea(
            parent=self,
            object_name="dock_area",
            enable_profile_management=False,
            startup_profile="skip",
        )
        self.setCentralWidget(self.dock_area)
        self._auto_update_selected_device: str | None = None

        self._default_dock = None  # type: ignore
        self.current_widget: BECWidget | None = None
        self.dock_name = None
        self._enabled = True
        self.start_auto_update()

    def start_auto_update(self):
        """
        Establish all connections for the auto updates.
        """
        self.bec_dispatcher.connect_slot(self._on_scan_status, MessageEndpoints.scan_status())

    def stop_auto_update(self):
        """
        Disconnect all connections for the auto updates.
        """
        self.bec_dispatcher.disconnect_slot(
            self._on_scan_status, MessageEndpoints.scan_status()  # type: ignore
        )

    @property
    def selected_device(self) -> str | None:
        """
        Get the selected device from the auto update config.

        Returns:
            str: The selected device. If no device is selected, None is returned.
        """
        return self._auto_update_selected_device

    @selected_device.setter
    def selected_device(self, value: str | None) -> None:
        """
        Set the selected device in the auto update config.

        Args:
            value(str): The selected device.
        """
        self._auto_update_selected_device = value

    @SafeSlot()
    def _on_scan_status(self, content: dict, metadata: dict) -> None:
        """
        Callback for scan status messages.
        """
        msg = ScanStatusMessage(**content, metadata=metadata)
        if not self.enabled:
            return

        self.enable_gui_highlights(True)

        match msg.status:
            case "open":
                self.on_scan_open(msg)
            case "closed":
                self.on_scan_closed(msg)
            case ["aborted", "halted"]:
                self.on_scan_abort(msg)
            case _:
                pass

    def start_default_dock(self):
        """
        Create a default dock for the auto updates.
        """
        self.dock_area.delete_all()
        self.dock_name = "update_dock"
        self.current_widget = self.dock_area.new("Waveform")
        docks = self.dock_area.dock_list()
        self._default_dock = docks[0] if docks else None

    @overload
    def set_dock_to_widget(self, widget: Literal["Waveform"]) -> Waveform: ...

    @overload
    def set_dock_to_widget(self, widget: Literal["Image"]) -> Image: ...

    @overload
    def set_dock_to_widget(self, widget: Literal["ScatterWaveform"]) -> ScatterWaveform: ...

    @overload
    def set_dock_to_widget(self, widget: Literal["MotorMap"]) -> MotorMap: ...

    @overload
    def set_dock_to_widget(self, widget: Literal["MultiWaveform"]) -> MultiWaveform: ...

    def set_dock_to_widget(
        self,
        widget: Literal["Waveform", "Image", "ScatterWaveform", "MotorMap", "MultiWaveForm"] | str,
    ) -> BECWidget:
        """
        Set the dock to the widget.

        Args:
            widget (str): The widget to set the dock to. Must be the name of a valid widget class.

        Returns:
            BECWidget: The widget that was set.
        """
        if self.current_widget is None:
            logger.warning(
                f"Auto Updates: No default dock found. Creating a new one with name {self.dock_name}"
            )
            self.start_default_dock()
        assert self.current_widget is not None

        if self.current_widget.__class__.__name__ != widget:
            self.dock_area.delete_all()
            self.current_widget = self.dock_area.new(widget)
            docks = self.dock_area.dock_list()
            self._default_dock = docks[0] if docks else None
        return self.current_widget

    def get_selected_device(
        self, monitored_devices, selected_device: str | None = None
    ) -> str | None:
        """
        Get the selected device for the plot. If no device is selected, the first
        device in the monitored devices list is selected.
        """

        if selected_device is None:
            selected_device = self.selected_device
        if selected_device:
            return selected_device
        if len(monitored_devices) > 0:
            sel_device = monitored_devices[0]
            return sel_device
        return None

    def enable_gui_highlights(self, enable: bool) -> None:
        """
        Enable or disable GUI highlights.

        Args:
            enable (bool): Whether to enable or disable the highlights.
        """
        if enable:
            title = self.dock_area.window().windowTitle()
            if " [Auto Updates]" in title:
                return
            self.dock_area.window().setWindowTitle(f"{title} [Auto Updates]")
        else:
            title = self.dock_area.window().windowTitle()
            self.dock_area.window().setWindowTitle(title.replace(" [Auto Updates]", ""))

    @property
    def enabled(self) -> bool:
        """
        Get the enabled status of the auto updates.
        """
        return self._enabled

    @enabled.setter
    def enabled(self, value: bool) -> None:
        """
        Set the enabled status of the auto updates.
        """
        if self._enabled == value:
            return
        self._enabled = value

        if value:
            self.start_auto_update()
            self.enable_gui_highlights(True)
            self.on_start()
        else:
            self.stop_auto_update()
            self.enable_gui_highlights(False)
            self.on_stop()

    def cleanup(self) -> None:
        """
        Cleanup procedure to run when the auto updates are disabled.
        """
        self.enabled = False
        self.stop_auto_update()
        self.dock_area.close()
        self.dock_area.deleteLater()
        self.dock_area = None
        super().cleanup()

    ########################################################################
    ################# Update Functions #####################################
    ########################################################################

    def simple_line_scan(self, info: ScanStatusMessage) -> None:
        """
        Simple line scan.

        Args:
            info (ScanStatusMessage): The scan status message.
        """

        # Set the dock to the waveform widget
        wf = self.set_dock_to_widget("Waveform")

        # Get the scan report devices reported by the scan
        dev_x = info.scan_report_devices[0]  # type: ignore

        # For the y axis, get the selected device
        dev_y = self.get_selected_device(info.readout_priority["monitored"])  # type: ignore
        if not dev_y:
            return

        # Clear the waveform widget and plot the data
        # with the scan number and device names
        # as the label and title
        wf.clear_all()
        wf.plot(
            device_x=dev_x,
            device_y=dev_y,
            label=f"Scan {info.scan_number} - {dev_y}",
            title=f"Scan {info.scan_number}",
            x_label=dev_x,
            y_label=dev_y,
        )

        logger.info(
            f"Auto Update [simple_line_scan]: Started plot with: device_x={dev_x}, device_y={dev_y}"
        )

    def simple_grid_scan(self, info: ScanStatusMessage) -> None:
        """
        Simple grid scan.

        Args:
            info (ScanStatusMessage): The scan status message.
        """
        # Set the dock to the scatter waveform widget
        scatter = self.set_dock_to_widget("ScatterWaveform")

        # Get the scan report devices reported by the scan
        dev_x, dev_y = info.scan_report_devices[0], info.scan_report_devices[1]  # type: ignore
        dev_z = self.get_selected_device(info.readout_priority["monitored"])  # type: ignore

        if None in (dev_x, dev_y, dev_z):
            return

        # Clear the scatter waveform widget and plot the data
        scatter.clear_all()
        scatter.plot(
            device_x=dev_x,
            device_y=dev_y,
            device_z=dev_z,
            label=f"Scan {info.scan_number} - {dev_z}",
        )

        logger.info(
            f"Auto Update [simple_grid_scan]: Started plot with: device_x={dev_x}, device_y={dev_y}, device_z={dev_z}"
        )

    def best_effort(self, info: ScanStatusMessage) -> None:
        """
        Best effort scan.

        Args:
            info (ScanStatusMessage): The scan status message.
        """

        # If the scan report devices are empty, there is nothing we can do
        if not info.scan_report_devices:
            return
        dev_x = info.scan_report_devices[0]  # type: ignore
        dev_y = self.get_selected_device(info.readout_priority["monitored"])  # type: ignore
        if not dev_y:
            return

        # Set the dock to the waveform widget
        wf = self.set_dock_to_widget("Waveform")

        # Clear the waveform widget and plot the data
        wf.clear_all()
        wf.plot(
            device_x=dev_x,
            device_y=dev_y,
            label=f"Scan {info.scan_number} - {dev_y}",
            title=f"Scan {info.scan_number}",
            x_label=dev_x,
            y_label=dev_y,
        )

        logger.info(
            f"Auto Update [best_effort]: Started plot with: device_x={dev_x}, device_y={dev_y}"
        )

    #######################################################################
    ################# GUI Callbacks #######################################
    #######################################################################

    def on_start(self) -> None:
        """
        Procedure to run when the auto updates are enabled.
        """
        self.start_default_dock()

    def on_stop(self) -> None:
        """
        Procedure to run when the auto updates are disabled.
        """

    def on_scan_open(self, msg: ScanStatusMessage) -> None:
        """
        Procedure to run when a scan starts.

        Args:
            msg (ScanStatusMessage): The scan status message.
        """
        if msg.scan_name == "line_scan" and msg.scan_report_devices:
            return self.simple_line_scan(msg)
        if msg.scan_name == "grid_scan" and msg.scan_report_devices:
            return self.simple_grid_scan(msg)
        if msg.scan_report_devices:
            return self.best_effort(msg)
        return None

    def on_scan_closed(self, msg: ScanStatusMessage) -> None:
        """
        Procedure to run when a scan ends.

        Args:
            msg (ScanStatusMessage): The scan status message.
        """

    def on_scan_abort(self, msg: ScanStatusMessage) -> None:
        """
        Procedure to run when a scan is aborted.

        Args:
            msg (ScanStatusMessage): The scan status message.
        """

Custom Auto Updates

The beamline can customize their default behaviour through customized auto update classes. This can be achieved by adding an auto update class to the plugin repository: <beamline_plugin>/bec_widgets/auto_updates/auto_updates.py. The class must inherit from the AutoUpdates class.

An example of a custom auto update class PXIIIUpdate is shown below.

Note

The code below is simply a copy of the default auto update class’s ‘GUI Callbacks’ section. The user can modify any of the methods to suit their needs but we suggest to have a look at the ‘GUI Callbacks’ section and the ‘Update Functions’ section of the default auto update class to understand how to implement the custom auto update class.

from __future__ import annotations

from typing import TYPE_CHECKING

from bec_widgets.widgets.containers.auto_update.auto_updates import AutoUpdates

if TYPE_CHECKING: # pragma: no cover
    from bec_lib.messages import ScanStatusMessage


class PXIIIUpdate(AutoUpdates):

    #######################################################################
    ################# GUI Callbacks #######################################
    #######################################################################

    def on_start(self) -> None:
        """
        Procedure to run when the auto updates are enabled.
        """
        self.start_default_dock()

    def on_stop(self) -> None:
        """
        Procedure to run when the auto updates are disabled.
        """

    def on_scan_open(self, msg: ScanStatusMessage) -> None:
        """
        Procedure to run when a scan starts.

        Args:
            msg (ScanStatusMessage): The scan status message.
        """
        if msg.scan_name == "line_scan" and msg.scan_report_devices:
            return self.simple_line_scan(msg)
        if msg.scan_name == "grid_scan" and msg.scan_report_devices:
            return self.simple_grid_scan(msg)
        if msg.scan_report_devices:
            return self.best_effort(msg)
        return None

    def on_scan_closed(self, msg: ScanStatusMessage) -> None:
        """
        Procedure to run when a scan ends.

        Args:
            msg (ScanStatusMessage): The scan status message.
        """

    def on_scan_abort(self, msg: ScanStatusMessage) -> None:
        """
        Procedure to run when a scan is aborted.

        Args:
            msg (ScanStatusMessage): The scan status message.
        """

Important

In order for the custom auto update method to be found, the class must be added to the __init__.py file of the auto_updates folder. This should be done already when the plugin repository is created but it is worth mentioning here. If not, the user can add the following line to the __init__.py file:

from .auto_updates import *
